Using the hardware driver

Network and startup

Connect the PC and devices to the same LAN. Configure the PC’s LAN address, device names, counts and IPs in the files described in Configuration. For static assignment, give each device a stable address and set random_assign: false. Discovery assigns found devices in sorted IP order; it does not establish permanent identity-to-name mapping.

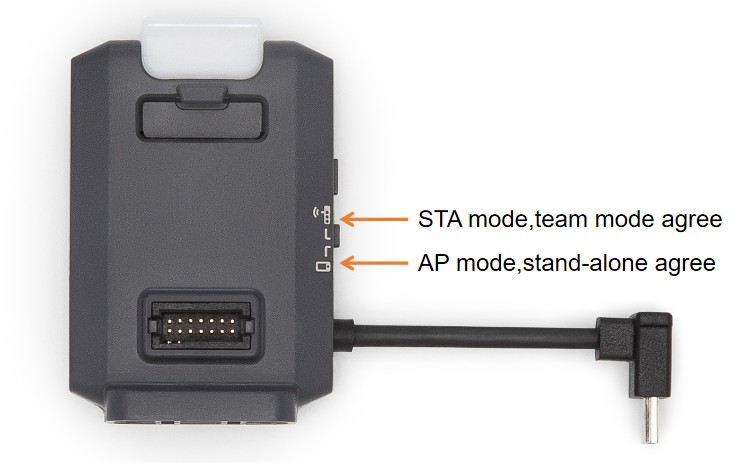

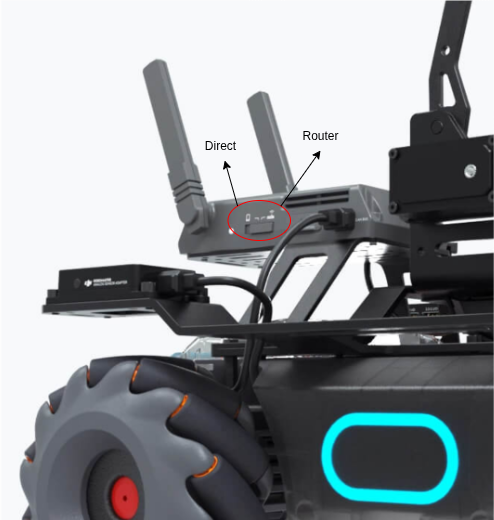

For initial Wi-Fi setup, edit setup_wifi.yaml and run the helper. RMTTs begin in direct/AP mode for configuration, then must be switched to router/STA mode. EP devices use router mode and the generated QR code:

source install/setup.bash
ros2 launch robomaster_ros2 setup_wifi.launch.py

The optional IP/serial helper uses retrive_robot_info.yaml and writes sn_to_name.yaml:

ros2 launch robomaster_ros2 retrive_robot_info.launch.py

Start the server with the configured YAML values:

ros2 launch robomaster_ros2 robomaster_server.launch.py

For explicit counts, also supply the intended LAN address. For example, after setting ROBOT_LAN_IP to the PC’s address:

ros2 launch robomaster_ros2 robomaster_server.launch.py \
  num_of_drones:=1 num_of_eps1:=1 local_ip:="$ROBOT_LAN_IP" \
  random_assign:=false keyboard_cmd:=false

When keyboard control is enabled, Alt+A arms all registered drones, Alt+T requests takeoff, Alt+L requests landing and Alt+E requests emergency stop. Disable server keyboard shortcuts when another tool owns motion commands.

Direct camera images

Enable pub_cam for the intended devices. Both RMTT and EP/Core drivers publish directly on /<name>/image using sensor_msgs/msg/Image with bgr8 encoding. QoS is best-effort, volatile and depth one. In RViz choose the raw image topic and Best Effort reliability; a reliable-only subscriber does not match this publisher.

Video is decoded with PyAV. The ROS header uses the device name as frame_id and the node clock at publication as the timestamp. publish_fps is a ceiling, not a guaranteed delivered frequency: Wi-Fi, device capture, decoding and subscriber load can reduce it. No compression plugin or extra bridge process is used. Standard ROS topic remapping applies to the direct publisher.

RMTT FPS, bitrate and resolution live under rmtt.camera; direction is selected per drone. EP/Core supports 360p, 540p and 720p and receives the device video stream on TCP port 40921. See Configuration for camera controls. Stopping/removing a device stops its video path; the device node owns its ROS publisher. The optional legacy libmedia_codec binding is for EP audio only.

Motion gate and telemetry

Use set_armed for the chassis/gimbal or RMTT flight gate when arming is required:

ros2 service call /rmtt_1/set_armed std_srvs/srv/SetBool "{data: true}"
ros2 service call /rmep_1/set_armed std_srvs/srv/SetBool "{data: true}"

Refresh non-zero gated velocities within the configured command_timeout. Expiry sends chassis/gimbal zeros or an RMTT RC hover command. A latched expiry requires rearming. Disarming explicitly stops these gated channels. This gate does not cover the current EP arm velocity stream.

Enable pub_position for /<robot>/position (PoseStamped). Publication waits for position and chassis-attitude samples, and orientation is a quaternion with yaw relative to the first attitude sample. This is chassis telemetry, not externally measured world pose. pub_gimbal_angle enables GimbalAngle feedback on models with a gimbal. EP battery percentage comes from DDS; get_battery returns failure until a battery sample is available.

LEDs and armor

Ground robots provide led_chassis. Gimbal-equipped robots additionally provide led_gimbal and led_blaster. RGB channels use 0–255; gimbal LED indices are 0–7 and an empty selection uses the driver’s default indices 0–3.

ros2 service call /rmep_1/led_blaster robomaster_interface/srv/BlasterLED "{'on': true, brightness: 128}"
ros2 service call /rmtt_1/set_mled robomaster_interface/srv/TelloMled "{brightness: 64, color: 'r', mled_char: 'A', graph: '', scroll_dir: '', freq: 0.0}"

RMTT matrix LEDs accept a character or a 64-character custom graph using 0, r, b and p. Armor support publishes armor_hit and ir_hit events and exposes set_armor_sensitivity. The armor topic includes component/type/strength; IR feedback includes cumulative count and receiver metadata. Event topics do not need to publish continuously.

EP Core gripper

gripper accepts percentage targets 0, 25, 50, 75 and 100, returning after acceptance. gripper_state reports busy/completion state and the estimate. gripper_command accepts open, close, pause or reset; set_gripper_mode selects timed or feedback control.

ros2 service call /rmep_1/gripper robomaster_interface/srv/Gripper "{distance: 100}"
ros2 service call /rmep_1/set_gripper_mode robomaster_interface/srv/SetGripperMode "{mode: 'feedback'}"
ros2 service call /rmep_1/gripper_command robomaster_interface/srv/GripperCommand "{command: 'pause', power: 0}"

Hardware feedback reports only opened/closed/normal, not a continuous percentage. Feedback mode confirms endpoints; intermediate targets use calibrated timing. At startup, or after an interrupted/failed movement invalidates the estimate, command an endpoint before an intermediate target. Recalibrate full-travel time if the configured power changes.

EP Core tracked arm services

move_arm is relative and move_arm_to absolute, using X/Z metres. The response contains acceptance, action ID, state, percentage and completion. Relative moves clamp X to +/-0.22 m and Z to +/-0.15 m; out-of-range absolute targets are rejected. Optional completion waits must be finite and at most 60 seconds; a non-positive request timeout selects arm.completion_timeout.

ros2 service call /rmep_1/move_arm robomaster_interface/srv/MoveArm "{x: 0.02, z: 0.01, wait_for_completion: false, timeout: 0.0}"
ros2 service call /rmep_1/cancel_arm std_srvs/srv/Trigger "{}"

arm_action_status describes tracked actions. recenter_arm starts an absolute move to zero; reset_arm cancels an active action and recenters, because there is no distinct implemented SDK hardware reset. arm_position is a legacy PointStamped topic that passes DDS values through; do not infer its units from the metre-based service interface.

EP Core arm velocity stream

/<name>/arm_cmd_vel accepts Twist linear.x and linear.z in m/s. Other components are ignored. The current server uses 20 Hz timer output, clamps each velocity to +/-0.20 m/s and each relative increment to +/-0.03 m, and stops issuing increments after 0.25 seconds without a command. The deadline uses the ROS node clock. An increment already dispatched can finish.

These settings are driver constructor defaults, not YAML/launch parameters. Zero X/Z velocities stop new increments. The stream skips dispatch while a tracked arm action is observed busy; stream increments themselves are untracked.

Current limitations: the stream does not check set_armed or explicitly reject NaN/Inf, and disarm/expiry do not clear the cached command. The busy check and dispatch are separate, so concurrent streaming and tracked services do not have an atomic priority handoff. Stop the streaming publisher and send an explicit zero instead of relying on disarm to stop this arm path. These are implementation limits, not functionality supplied by the motion gate.

See Fleet diagnostics and joystick control for joystick and diagnostic behavior, including their current monitoring and stop limitations.
