Overview

This page explain the overview of the RoboMaster ROS 2 packages:

Explanation of packages

Source code is divided into several packages, each with its own purpose:

  • robomaster_interface: This package provides the interface for controlling the RoboMaster robots and drones.

  • robomaster_ros2: This package contains the main implementation of the RoboMaster ROS 2 node.

  • robomaster_examples: This package includes example scripts using the RoboMaster ROS 2 node.

  • robomaster_gz: This package provides integration with Gazebo for simulating the RoboMaster drones.

Interfaces

The robomaster_interface package provides the interface for controlling the RoboMaster robots and drones. It includes the necessary messages, services, and actions for communication between the ROS 2 nodes and the RoboMaster devices.

Name

Type

Description

GimbalAngle

Message

Message description for the gimbal angle of the robot.

GimbalVel

Message

Message description for the gimbal velocity of the robot.

TelloMpad

Message

Message description for the Tello mission pad recognition.

AddDrone

Service

Service to add a drone to the system.

AddRobot

Service

Service to add a robot to the system.

RemoveRobot

Service

Service to remove a drone/robot from the system.

Takeoff

Service

Service to command the drone to take off.

SetSpeed

Service

Service to set the speed of the drone.

TelloLED

Service

Service to control the LED of the Tello external module.

TelloMled

Service

Service to control the 8x8 matrix LED of the Tello external module

MoveChassis

Service

Service to move the chassis of the robot.

MoveArm

Service

Service to move the arm of the robot.

MoveGimbal

Service

Service to move the gimbal of the robot.

Gripper

Service

Service to open or close the gripper of the robot.

RobotLED

Service

Service to control the LED modules of the robot.

Fire

Service

Service to fire IR/gel-beans using the robots gimbal.

RoboMaster ROS 2

The robomaster_ros2 package is the main implementation of the RoboMaster server as well as several helper nodes. It provides the core functionality for controlling the RoboMaster robots and drones, including communication with the devices, handling of messages, and execution of commands.

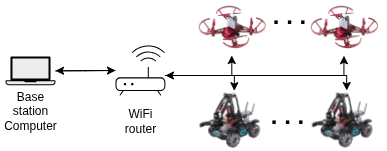

Connection overview

robomaster server

This is the main node, handles the server type framework for the RoboMaster robots and drones. It is used to configure/add/remove drones and robots as well as handles several common services.

Topics and services provided by the server and the added robo/drone:

List of services:

Name

Type

/add_drone

AddDrone

/add_robot

AddRobot

/remove_robot

RemoveRobot

/takeoff_all

Trigger

/land_all

Trigger

/drone_1/get_ns

Trigger

/drone_1/get_battery

Trigger

/drone_1/set_speed

SetSpeed

/drone_1/takeoff

Takeoff

/drone_1/land

Trigger

/drone_1/hover

Empty

/drone_1/soft_emergency

Trigger

/drone_1/emergency

Empty

/drone_1/set_led

TelloLED

/drone_1/set_mled

TelloMled

/drone_1/status

Trigger

/drone_1/reboot

Empty

/robot_1/get_ns

Trigger

/robot_1/led_chassis

RobotLED

/robot_1/move_gimbal

MoveGimbal

/robot_1/fire

Fire

/robot_1/move_arm

MoveArm

/robot_1/gripper

Gripper

List of topics (published/subscribed):

Name

Type

/drone_1/rmtt_server/pose

Pose

/drone_1/front_tof

Range

/drone_1/bottom_tof

Range

/drone_1/imu

Imu

/drone_1/attitude

QuaternionStamped

/drone_1/baro

FluidPressure

/drone_1/mpad

TelloMpad

/drone_1/image


/drone_1/cmd_vel

Twist

/drone_1/external_position

PoseStamped

/robot_1/arm_position

PointStamped

/robot_1/gimbal_cmd_vel

GimbalVel

/robot_1/cmd_vel

Twist
